How to Add Printer

Modified on Fri, 29 Dec, 2023 at 3:44 PM

Go to Management > Invoice Setting Printer:

  • Only Bluetooth Printer or LAN Printer can be used in Popcorn Pos System

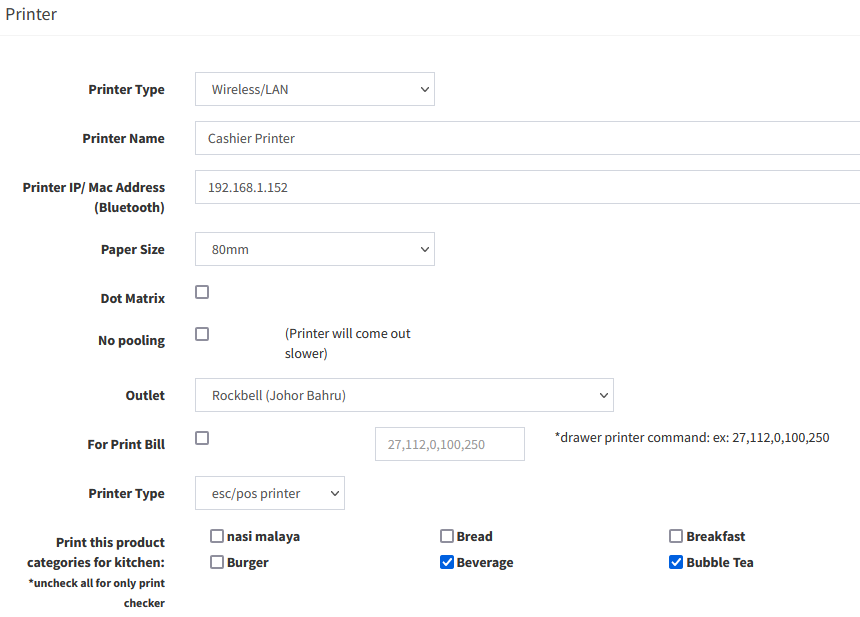

Create LAN Printer (LAN Printer must be linked with LAN Cable):



  • Printer Type: Select Wireless/LAN
  • Printer Name: e.g. Cashier Printer/Kitchen Printer/Bar Printer
  •  Printer IP: Print out the Self-Test from Printer, and key in the IP address to this column
    *This step might need to assign a IP address to Printer (Printer Configuration)
  • Paper Size: Receipt Paper Size (58mm/80mm)
  • Outlet: Select outlet for this printer
  • For Print Bill: Tick this function to print out the receipt (Normally for Cashier Printer)
  • Printer Type: For Normal Thermal Receipt Printer, please select esc/pos printer. For Sticker Label Printer, please select sticker printer
  • Print this product categories for kitchen: For Kitchen Checker Use

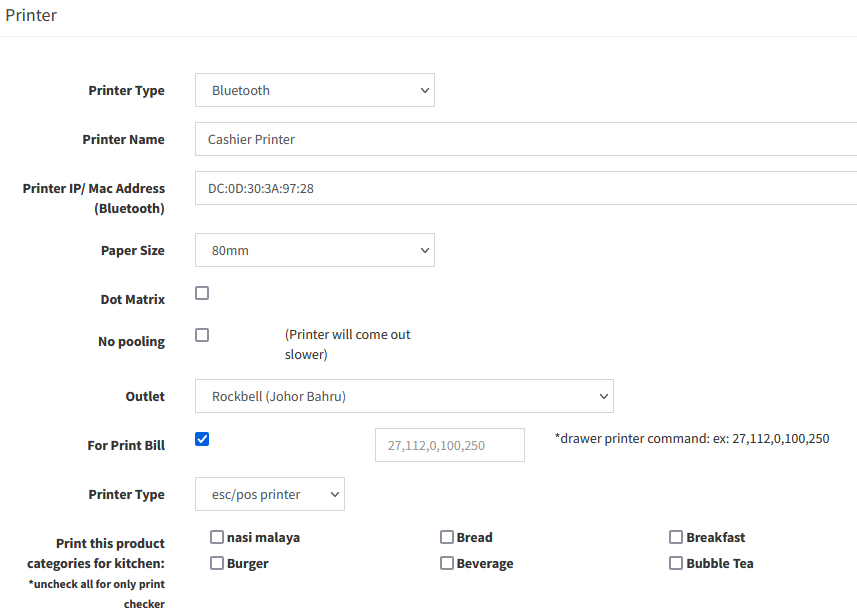

Create Bluetooth Printer:

  • Printer Type: Select Bluetooth
  • Printer Name: e.g. Cashier Printer/Kitchen Printer/Bar Printer
  •  Mac Address: Print out the Self-Test from Printer, and key in the Mac/BDA address to this column
  • Paper Size: Receipt Paper Size (58mm/80mm)
  • Outlet: Select outlet for this printer
  • For Print Bill: Tick this function to print out the receipt (Normally for Cashier Printer)
  • Printer Type: For Normal Thermal Receipt Printer, please select esc/pos printer. For Sticker Label Printer, please select sticker printer
  • Print this product categories for kitchen: For Kitchen Checker Use



----------------------------------------------------------------------------------------------------------------------------------------------------------

Please refer to the video below for more information:
